規格: | Model | LM75JC |
| Focal length(mm) | 75 |
| Image size(mm) | 2/3"(Φ11) |
| Iris range(F-stop) | F2.5-F22 |
| Focusing range(m) | 1.2-∞ |
| Control | Iris | Manual |
| Focus | Manual |
| Shooting range at M.O.D. | 50.8(H)×38.1(V) |
| Angle of view | 2/3 inch | 6.7×5.0 |
| (degree) | 1/2 inch | 4.9×3.7 |
| 1/3 inch | 3.7×2.8 |
| Resolution(Center, Corner) | 100lp/mm,60lp/mm |
| Distortion(TV) | ?0.1% |
| Back focus in air(mm) | 18.0 |
| Mount | C-mount |
| Filter thread(mm) | M34×P0.5 |

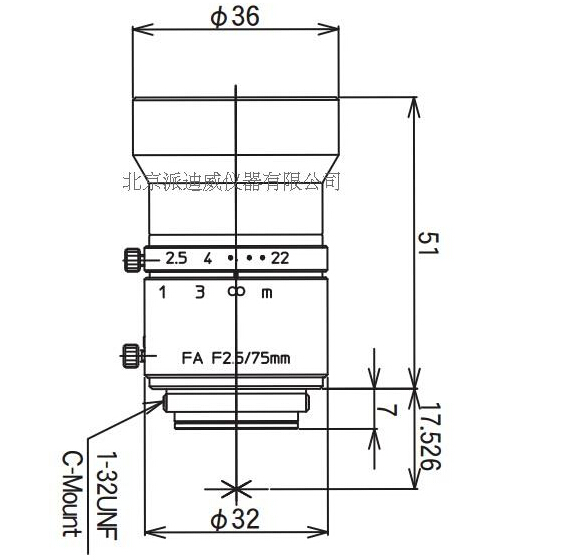

| Size(mm) | Φ36×51 |
| Weight(g) | 105 |
| Temperature range | ?10oC-+45oC |
Specifications are subject to change without notice.
產品詳情:
服務:
常見問題:
注意事項:
我們很高興你能和我們合作。為了節省你的時間，在選擇產品時，請查看參數或與我們的銷售溝通，避免你購買的產品，因參數與你的使用要求不一致，耽誤你的工期進度。我們?cè)俅胃兄x你的支持。
